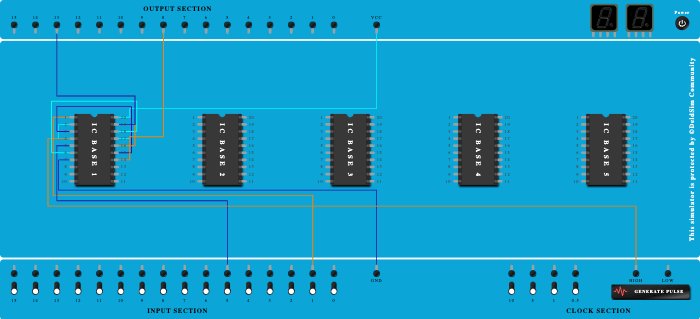

Procedure
- Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
- Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
- Connect Input-1 to Pin-1 (Input & Output) of ICBase-1.
- Connect Input-5 to Pin-5 (Input & Output) of ICBase-1.
- Connect Pin-4 (Input & Output) of ICBase-1 to Pin-2 (Input & Output) of ICBase-1.
- Connect Manual clock Port to Pin-4 (Input & Output) of ICBase-1.
- Connect Pin-15 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-1.
- Connect Pin-18 (Input & Output) of ICBase-1 to Pin-6 (Input & Output) of ICBase-1.
- Connect Pin-19 (Input & Output) of ICBase-1 to Pin-16 (Input & Output) of ICBase-1.
- Connect Output-13 to Pin-19 (Input & Output) of ICBase-1.
- Connect Pin-14 (Input & Output) of ICBase-1 to Pin-17 (Input & Output) of ICBase-1.
- Connect Pin-14 (Input & Output) of ICBase-1 to Output-8.
