Full adder using 74151 - Copy

Prayag
Prayag Patil
• Created on Jan 14, 2022 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
Full adder using 74151 - Copy
100%

Integrated Circuits Used

74LS151

Procedure

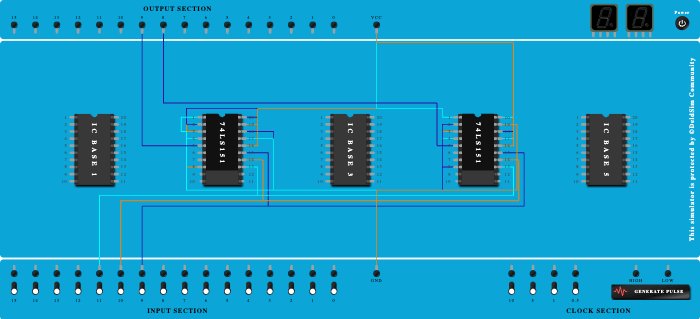

  1. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS151).
  2. Connect Pin-20 (VCC) of ICBase-4 (74LS151) to VCC Port.
  3. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS151).
  4. Connect GND Port to Pin-8 (Ground) of ICBase-4 (74LS151).
  5. Connect Input-11 to Pin-13 (Input) of ICBase-2 (74LS151).
  6. Connect Input-10 to Pin-14 (Input) of ICBase-2 (74LS151).
  7. Connect Input-9 to Pin-15 (Input) of ICBase-2 (74LS151).
  8. Connect Input-11 to Pin-13 (Input) of ICBase-4 (74LS151).
  9. Connect Input-10 to Pin-14 (Input) of ICBase-4 (74LS151).
  10. Connect Input-9 to Pin-15 (Input) of ICBase-4 (74LS151).
  11. Connect GND Port to Pin-4 (Input) of ICBase-2 (74LS151).
  12. Connect VCC Port to Pin-3 (Input) of ICBase-2 (74LS151).
  13. Connect VCC Port to Pin-2 (Input) of ICBase-2 (74LS151).
  14. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS151).
  15. Connect VCC Port to Pin-19 (Input) of ICBase-2 (74LS151).
  16. Connect GND Port to Pin-18 (Input) of ICBase-2 (74LS151).
  17. Connect GND Port to Pin-17 (Input) of ICBase-2 (74LS151).
  18. Connect VCC Port to Pin-16 (Input) of ICBase-2 (74LS151).
  19. Connect Output-9 to Pin-5 (Output) of ICBase-2 (74LS151).
  20. Connect GND Port to Pin-4 (Input) of ICBase-4 (74LS151).
  21. Connect GND Port to Pin-3 (Input) of ICBase-4 (74LS151).
  22. Connect GND Port to Pin-2 (Input) of ICBase-4 (74LS151).
  23. Connect VCC Port to Pin-1 (Input) of ICBase-4 (74LS151).
  24. Connect GND Port to Pin-19 (Input) of ICBase-4 (74LS151).
  25. Connect VCC Port to Pin-18 (Input) of ICBase-4 (74LS151).
  26. Connect VCC Port to Pin-17 (Input) of ICBase-4 (74LS151).
  27. Connect VCC Port to Pin-16 (Input) of ICBase-4 (74LS151).
  28. Connect Output-8 to Pin-5 (Output) of ICBase-4 (74LS151).
  29. Add IC 74LS151 into ICBase-2 (74LS151).
  30. Add IC 74LS151 into ICBase-4 (74LS151).
