Assignment No 6
100%

Integrated Circuits Used

74LS86

Description

Even Parity Bit

Procedure

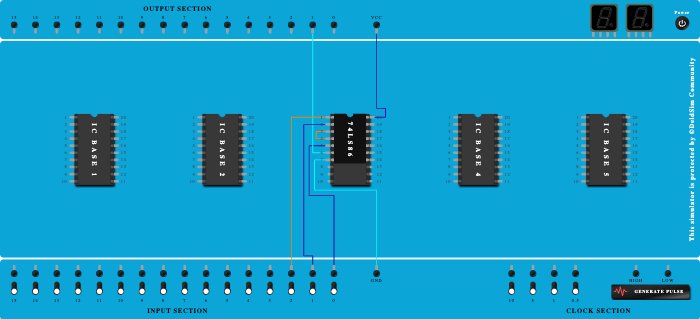

  1. Add IC 74LS86 into ICBase-3 (74LS86).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS86).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS86).
  4. Connect Pin-4 (Input) of ICBase-3 (74LS86) to Pin-3 (Output) of ICBase-3 (74LS86).
  5. Connect Input-0 to Pin-5 (Input) of ICBase-3 (74LS86).
  6. Connect Output-1 to Pin-6 (Output) of ICBase-3 (74LS86).
  7. Connect Pin-1 (Input) of ICBase-3 (74LS86) to Input-2.
  8. Connect Pin-2 (Input) of ICBase-3 (74LS86) to Input-1.
