full adder

Abhijnan
Abhijnan Mallick
• Created on Mar 9, 2022 • 15 • 0 • 4
Edit Circuit Copy Circuit Try Yourself

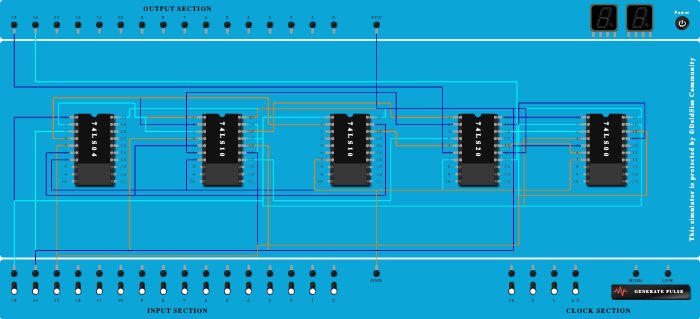

full adder
100%

Integrated Circuits Used

74LS04 74LS10 74LS20 74LS00

Procedure

  1. Add IC 74LS04 into ICBase-1 (74LS04).
  2. Add IC 74LS10 into ICBase-2 (74LS10).
  3. Add IC 74LS10 into ICBase-3 (74LS10).
  4. Add IC 74LS20 into ICBase-4 (74LS20).
  5. Connect Pin-1 (Input) of ICBase-1 (74LS04) to Input-15.
  6. Connect Pin-3 (Input) of ICBase-1 (74LS04) to Input-14.
  7. Connect Pin-5 (Input) of ICBase-1 (74LS04) to Input-13.
  8. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS04).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS04).
  10. Connect Pin-1 (Input) of ICBase-2 (74LS10) to Pin-2 (Output) of ICBase-1 (74LS04).
  11. Connect Pin-2 (Input) of ICBase-2 (74LS10) to Pin-4 (Output) of ICBase-1 (74LS04).
  12. Connect Pin-19 (Input) of ICBase-2 (74LS10) to Input-13.
  13. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS10).
  14. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS10).
  15. Connect Pin-3 (Input) of ICBase-2 (74LS10) to Pin-2 (Output) of ICBase-1 (74LS04).
  16. Connect Pin-4 (Input) of ICBase-2 (74LS10) to Input-14.
  17. Connect Pin-5 (Input) of ICBase-2 (74LS10) to Pin-6 (Output) of ICBase-1 (74LS04).
  18. Connect Input-15 to Pin-17 (Input) of ICBase-2 (74LS10).
  19. Connect Pin-16 (Input) of ICBase-2 (74LS10) to Input-14.
  20. Connect Pin-15 (Input) of ICBase-2 (74LS10) to Input-13.
  21. Connect Pin-1 (Input) of ICBase-3 (74LS10) to Input-15.
  22. Connect Pin-2 (Input) of ICBase-3 (74LS10) to Pin-4 (Output) of ICBase-1 (74LS04).
  23. Connect Pin-6 (Output) of ICBase-1 (74LS04) to Pin-19 (Input) of ICBase-3 (74LS10).
  24. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS10).
  25. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS10).
  26. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS20).
  27. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS20).
  28. Connect Pin-1 (Input) of ICBase-4 (74LS20) to Pin-18 (Output) of ICBase-2 (74LS10).
  29. Connect Pin-2 (Input) of ICBase-4 (74LS20) to Pin-6 (Output) of ICBase-2 (74LS10).
  30. Connect Pin-4 (Input) of ICBase-4 (74LS20) to Pin-14 (Output) of ICBase-2 (74LS10).
  31. Connect Pin-5 (Input) of ICBase-4 (74LS20) to Pin-18 (Output) of ICBase-3 (74LS10).
  32. Connect Output-15 to Pin-6 (Output) of ICBase-4 (74LS20).
  33. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS00).
  34. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS00).
  35. Connect Pin-1 (Input) of ICBase-5 (74LS00) to Input-14.
  36. Connect Pin-2 (Input) of ICBase-5 (74LS00) to Input-13.
  37. Connect Pin-4 (Input) of ICBase-5 (74LS00) to Input-15.
  38. Connect Pin-5 (Input) of ICBase-5 (74LS00) to Input-14.
  39. Connect Pin-19 (Input) of ICBase-5 (74LS00) to Input-15.
  40. Connect Input-13 to Pin-18 (Input) of ICBase-5 (74LS00).
  41. Connect Pin-19 (Input) of ICBase-4 (74LS20) to Pin-17 (Output) of ICBase-5 (74LS00).
  42. Connect Pin-18 (Input) of ICBase-4 (74LS20) to Pin-3 (Output) of ICBase-5 (74LS00).
  43. Connect Pin-16 (Input) of ICBase-4 (74LS20) to Pin-6 (Output) of ICBase-5 (74LS00).
  44. Connect VCC Port to Pin-15 (Input) of ICBase-4 (74LS20).
  45. Connect Output-14 to Pin-14 (Output) of ICBase-4 (74LS20).
  46. Add IC 74LS00 into ICBase-5 (74LS00).
