bcd to excess 3

Shruti
Shruti Mane
• Created on Jan 10, 2022 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself

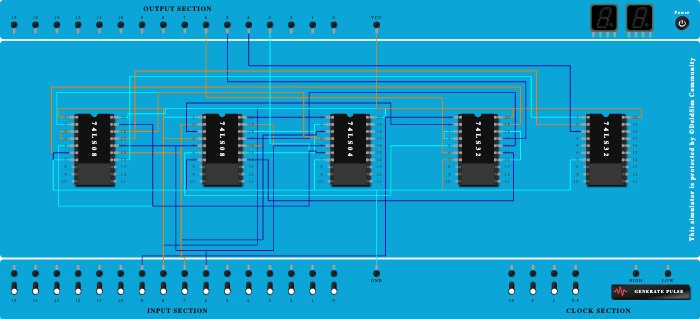

bcd to excess 3
100%

Integrated Circuits Used

74LS08 74LS04 74LS32

Procedure

  1. Add IC 74LS08 into ICBase-2 (74LS08).
  2. Add IC 74LS04 into ICBase-3 (74LS04).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS32).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  10. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Input-9.
  11. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Input-8.
  12. Connect Pin-2 (Input) of ICBase-2 (74LS08) to Input-7.
  13. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Pin-3 (Output) of ICBase-2 (74LS08).
  14. Connect Pin-4 (Input) of ICBase-4 (74LS32) to Pin-3 (Output) of ICBase-4 (74LS32).
  15. Connect Pin-4 (Input) of ICBase-2 (74LS08) to Input-8.
  16. Connect Pin-5 (Input) of ICBase-2 (74LS08) to Input-6.
  17. Connect Pin-5 (Input) of ICBase-4 (74LS32) to Pin-6 (Output) of ICBase-2 (74LS08).
  18. Connect Output-6 to Pin-6 (Output) of ICBase-4 (74LS32).
  19. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Input-8.
  20. Connect Pin-15 (Input) of ICBase-2 (74LS08) to Pin-2 (Output) of ICBase-3 (74LS04).
  21. Connect Pin-16 (Input) of ICBase-2 (74LS08) to Input-7.
  22. Connect Pin-15 (Input) of ICBase-4 (74LS32) to Pin-14 (Output) of ICBase-2 (74LS08).
  23. Connect Pin-18 (Input) of ICBase-2 (74LS08) to Pin-2 (Output) of ICBase-3 (74LS04).
  24. Connect Pin-19 (Input) of ICBase-2 (74LS08) to Input-6.
  25. Connect Pin-17 (Output) of ICBase-2 (74LS08) to Pin-16 (Input) of ICBase-4 (74LS32).
  26. Connect Pin-18 (Input) of ICBase-4 (74LS32) to Pin-14 (Output) of ICBase-4 (74LS32).
  27. Add IC 74LS08 into ICBase-1 (74LS08).
  28. Connect Pin-1 (Input) of ICBase-1 (74LS08) to Input-8.
  29. Connect Pin-3 (Input) of ICBase-3 (74LS04) to Input-7.
  30. Connect Pin-2 (Input) of ICBase-1 (74LS08) to Pin-4 (Output) of ICBase-3 (74LS04).
  31. Connect Pin-4 (Input) of ICBase-1 (74LS08) to Pin-3 (Output) of ICBase-1 (74LS08).
  32. Connect Pin-5 (Input) of ICBase-3 (74LS04) to Input-6.
  33. Connect Pin-5 (Input) of ICBase-1 (74LS08) to Pin-6 (Output) of ICBase-3 (74LS04).
  34. Connect Pin-19 (Input) of ICBase-4 (74LS32) to Pin-6 (Output) of ICBase-1 (74LS08).
  35. Connect Output-5 to Pin-17 (Output) of ICBase-4 (74LS32).
  36. Connect Output-3 to Pin-6 (Output) of ICBase-3 (74LS04).
  37. Connect Pin-15 (Input) of ICBase-1 (74LS08) to Input-7.
  38. Connect Pin-16 (Input) of ICBase-1 (74LS08) to Input-6.
  39. Add IC 74LS32 into ICBase-5 (74LS32).
  40. Connect Pin-1 (Input) of ICBase-5 (74LS32) to Pin-14 (Output) of ICBase-1 (74LS08).
  41. Connect Pin-18 (Input) of ICBase-1 (74LS08) to Pin-4 (Output) of ICBase-3 (74LS04).
  42. Connect Pin-19 (Input) of ICBase-1 (74LS08) to Pin-6 (Output) of ICBase-3 (74LS04).
  43. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS08).
  44. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS32).
  45. Connect GND Port to Pin-6 (Output) of ICBase-1 (74LS08).
  46. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS32).
  47. Connect Pin-2 (Input) of ICBase-5 (74LS32) to Pin-17 (Output) of ICBase-1 (74LS08).
  48. Connect Output-4 to Pin-3 (Output) of ICBase-5 (74LS32).
  49. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  50. Connect GND Port to ICBase-4 (74LS32).
