3 bit rippel asynchronus down counter

Susmit
Susmit Garudkar
• Created on Jan 12, 2022 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself

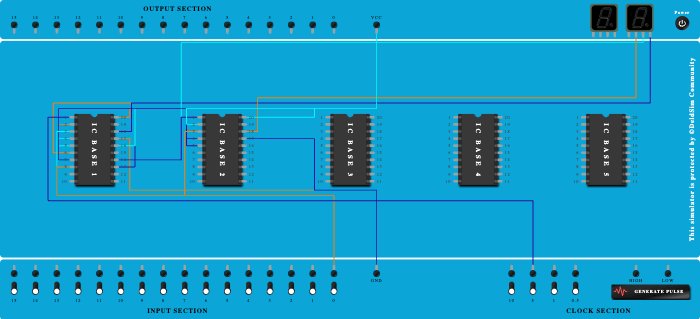

3 bit rippel asynchronus down counter
100%

Procedure

  1. Connect VCC Port to Pin-5 (Input & Output) of ICBase-2.
  2. Connect Pin-5 (Input & Output) of ICBase-1 to VCC Port.
  3. Connect GND Port to Pin-17 (Input & Output) of ICBase-1.
  4. Connect Pin-17 (Input & Output) of ICBase-2 to GND Port.
  5. Connect VCC Port to Pin-4 (Input & Output) of ICBase-1.
  6. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  7. Connect VCC Port to Pin-13 (Input & Output) of ICBase-1.
  8. Connect Pin-16 (Input & Output) of ICBase-1 to VCC Port.
  9. Connect Pin-6 (Input & Output) of ICBase-1 to Pin-18 (Input & Output) of ICBase-1.
  10. Connect Seven segment display 1 to Pin-18 (Input & Output) of ICBase-1.
  11. Connect Pin-14 (Input & Output) of ICBase-1 to Seven segment display 1.
  12. Connect VCC Port to Pin-2 (Input & Output) of ICBase-1.
  13. Connect VCC Port to Pin-7 (Input & Output) of ICBase-1.
  14. Connect Input-0 to Pin-3 (Input & Output) of ICBase-1.
  15. Connect Pin-8 (Input & Output) of ICBase-1 to Input-0.
  16. Connect VCC Port to Pin-4 (Input & Output) of ICBase-2.
  17. Connect Pin-20 (Input & Output) of ICBase-2 to VCC Port.
  18. Connect Seven segment display 1 to Pin-18 (Input & Output) of ICBase-2.
  19. Connect Pin-1 (Input & Output) of ICBase-2 to Pin-14 (Input & Output) of ICBase-1.
  20. Connect VCC Port to Pin-2 (Input & Output) of ICBase-2.
  21. Connect Input-0 to Pin-3 (Input & Output) of ICBase-2.
  22. Connect Clock port of 5Hz frequency to Pin-1 (Input & Output) of ICBase-1.
