Half_Adder

Dattatraya
Dattatraya Suryawanshi
• Created on Jan 12, 2022 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
Half_Adder
100%

Integrated Circuits Used

74LS86 74LS08

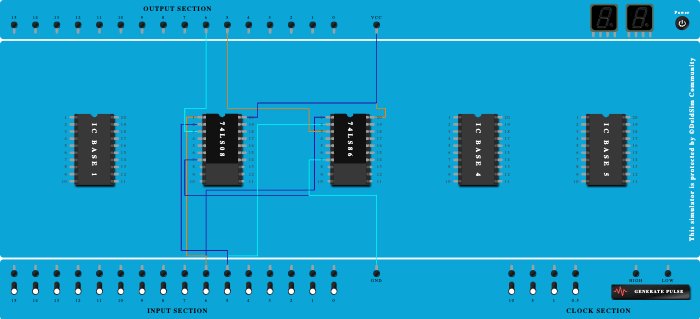

Procedure

  1. Add IC 74LS86 into ICBase-3 (74LS86).
  2. Add IC 74LS08 into ICBase-2 (74LS08).
  3. Connect Input-6 to Pin-1 (Input) of ICBase-3 (74LS86).
  4. Connect Pin-2 (Input) of ICBase-3 (74LS86) to Input-5.
  5. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Input-6.
  6. Connect Pin-2 (Input) of ICBase-2 (74LS08) to Input-5.
  7. Connect Output-6 to Pin-3 (Output) of ICBase-2 (74LS08).
  8. Connect Output-5 to Pin-3 (Output) of ICBase-3 (74LS86).
  9. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  10. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS86).
  11. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS86).
  12. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  13. Connect Input-3 to ICBase-3 (74LS86).
  14. Connect Input-5 to ICBase-3 (74LS86).
  15. Connect VCC Port to ICBase-2 (74LS08).
