half subtractor

Sarvadnya
Sarvadnya Nimbhorkar
• Created on Jan 12, 2022 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself

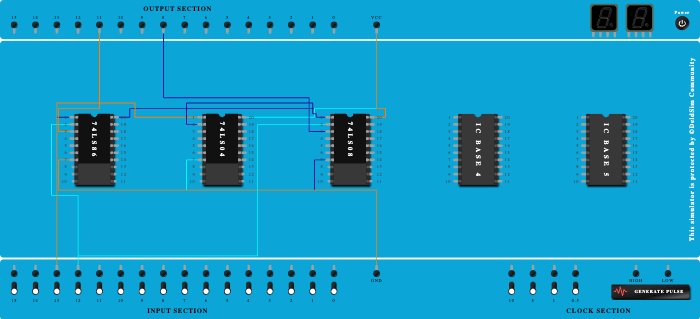

half subtractor
100%

Integrated Circuits Used

74LS04 74LS08 74LS86

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Add IC 74LS08 into ICBase-3 (74LS08).
  3. Add IC 74LS86 into ICBase-1 (74LS86).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  5. Connect Pin-7 (Ground) of ICBase-2 (74LS04) to GND Port.
  6. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS86).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS86).
  8. Connect Pin-20 (VCC) of ICBase-2 (74LS04) to VCC Port.
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS08).
  10. Connect Input-13 to Pin-1 (Input) of ICBase-1 (74LS86).
  11. Connect Input-12 to Pin-2 (Input) of ICBase-1 (74LS86).
  12. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Input-13.
  13. Connect Pin-2 (Output) of ICBase-2 (74LS04) to Pin-1 (Input) of ICBase-3 (74LS08).
  14. Connect Pin-2 (Input) of ICBase-3 (74LS08) to Input-12.
  15. Connect Output-11 to Pin-3 (Output) of ICBase-1 (74LS86).
  16. Connect Output-8 to Pin-3 (Output) of ICBase-3 (74LS08).
  17. Connect GND Port to ICBase-2 (74LS04).
  18. Connect GND Port to ICBase-1 (74LS86).
  19. Connect Input-12 to ICBase-1 (74LS86).
  20. Connect Input-13 to ICBase-2 (74LS04).
  21. Connect Pin-1 (Input) of ICBase-3 (74LS08) to ICBase-2 (74LS04).
  22. Connect Input-12 to ICBase-3 (74LS08).
