Integrated Circuits Used

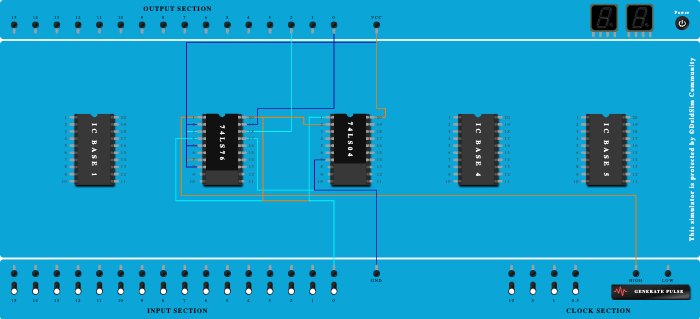

Procedure

  1. Connect Pin-5 (VCC) of ICBase-2 (74LS76) to VCC Port.
  2. Connect GND Port to Pin-17 (Ground) of ICBase-2 (74LS76).
  3. Connect Manual clock Port to Pin-1 (Input) of ICBase-2 (74LS76).
  4. Connect VCC Port to Pin-2 (Input) of ICBase-2 (74LS76).
  5. Connect VCC Port to Pin-3 (Input) of ICBase-2 (74LS76).
  6. Connect VCC Port to Pin-7 (Input) of ICBase-2 (74LS76).
  7. Connect VCC Port to Pin-8 (Input) of ICBase-2 (74LS76).
  8. Connect Input-0 to Pin-4 (Input) of ICBase-2 (74LS76).
  9. Connect Input-0 to Pin-20 (Input) of ICBase-2 (74LS76).
  10. Connect Output-0 to Pin-19 (Output) of ICBase-2 (74LS76).
  11. Connect Output-2 to Pin-18 (Output) of ICBase-2 (74LS76).
  12. Add IC 74LS76 into ICBase-2 (74LS76).
  13. Add IC 74LS04 into ICBase-3 (74LS04).
  14. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  15. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  16. Connect Input-0 to Pin-1 (Input) of ICBase-3 (74LS04).
  17. Connect Pin-20 (Input) of ICBase-2 (74LS76) to Pin-2 (Output) of ICBase-3 (74LS04).
