Full Subtractor..EC2121..Sneha

Sai
Sai Paithane
• Created on Jan 12, 2022 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself

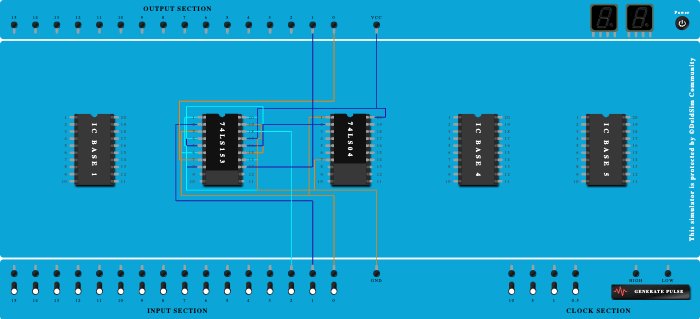

Full Subtractor..EC2121..Sneha
100%

Integrated Circuits Used

74LS153 74LS04

Procedure

  1. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS153).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS153).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  5. Connect GND Port to Pin-14 (Input) of ICBase-2 (74LS153).
  6. Connect Input-0 to Pin-1 (Input) of ICBase-3 (74LS04).
  7. Connect VCC Port to Pin-17 (Input) of ICBase-2 (74LS153).
  8. Connect Input-0 to Pin-6 (Input) of ICBase-2 (74LS153).
  9. Connect Input-0 to Pin-3 (Input) of ICBase-2 (74LS153).
  10. Connect Pin-2 (Output) of ICBase-3 (74LS04) to Pin-5 (Input) of ICBase-2 (74LS153).
  11. Connect Pin-2 (Output) of ICBase-3 (74LS04) to Pin-4 (Input) of ICBase-2 (74LS153).
  12. Connect Pin-2 (Output) of ICBase-3 (74LS04) to Pin-15 (Input) of ICBase-2 (74LS153).
  13. Connect Pin-2 (Output) of ICBase-3 (74LS04) to Pin-16 (Input) of ICBase-2 (74LS153).
  14. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS153).
  15. Connect GND Port to Pin-19 (Input) of ICBase-2 (74LS153).
  16. Connect Input-1 to Pin-2 (Input) of ICBase-2 (74LS153).
  17. Connect Input-2 to Pin-18 (Input) of ICBase-2 (74LS153).
  18. Connect Output-0 to Pin-7 (Output) of ICBase-2 (74LS153).
  19. Connect Output-1 to Pin-13 (Output) of ICBase-2 (74LS153).
  20. Add IC 74LS153 into ICBase-2 (74LS153).
  21. Add IC 74LS04 into ICBase-3 (74LS04).
