MOD-6 Counter

Pratik
Pratik Gupta
• Created on Oct 12, 2021 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself

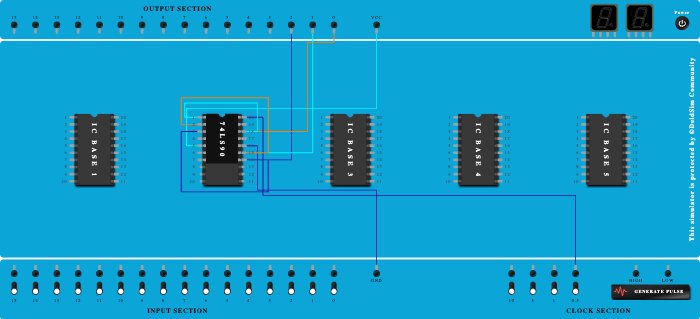

MOD-6 Counter
100%

Integrated Circuits Used

74LS90

Description

Decade Counter Used

Procedure

  1. Add IC 74LS90 into ICBase-2 (74LS90).
  2. Connect GND Port to Pin-16 (Ground) of ICBase-2 (74LS90).
  3. Connect VCC Port to Pin-5 (VCC) of ICBase-2 (74LS90).
  4. Connect Output-2 to Pin-14 (Output) of ICBase-2 (74LS90).
  5. Connect Output-1 to Pin-15 (Output) of ICBase-2 (74LS90).
  6. Connect Pin-18 (Output) of ICBase-2 (74LS90) to Output-0.
  7. Connect Clock port of 0.5Hz frequency to Pin-20 (Input) of ICBase-2 (74LS90).
  8. Connect Pin-18 (Output) of ICBase-2 (74LS90) to Pin-1 (Input) of ICBase-2 (74LS90).
  9. Connect Pin-15 (Output) of ICBase-2 (74LS90) to Pin-2 (Input) of ICBase-2 (74LS90).
  10. Connect Pin-3 (Input) of ICBase-2 (74LS90) to Pin-14 (Output) of ICBase-2 (74LS90).
  11. Connect Output-0 to ICBase-2 (74LS90).
  12. Connect Pin-14 (Output) of ICBase-2 (74LS90) to ICBase-2 (74LS90).
