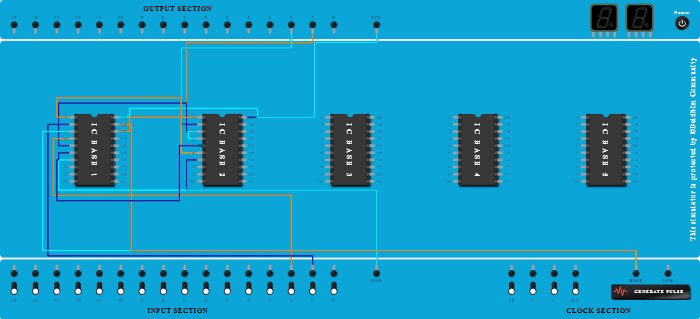

Procedure
- Connect Pin-20 (Input & Output) of ICBase-2 to VCC Port.
- Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
- Connect Pin-3 (Input & Output) of ICBase-2 to Output-1.
- Connect Pin-5 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-2.
- Connect Pin-4 (Input & Output) of ICBase-2 to Pin-3 (Input & Output) of ICBase-2.
- Connect Pin-1 (Input & Output) of ICBase-2 to Pin-18 (Input & Output) of ICBase-1.
- Connect Pin-2 (Input & Output) of ICBase-2 to Output-2.
- Connect Pin-6 (Input & Output) of ICBase-2 to Output-2.
- Connect Pin-6 (Input & Output) of ICBase-2 to Pin-1 (Input & Output) of ICBase-1.
- Connect GND Port to Pin-7 (Input & Output) of ICBase-2.
- Connect Pin-7 (Input & Output) of ICBase-1 to GND Port.
- Connect Input-2 to Pin-4 (Input & Output) of ICBase-1.
- Connect Pin-2 (Input & Output) of ICBase-1 to Input-1.
- Connect Pin-3 (Input & Output) of ICBase-1 to Manual clock Port.
- Connect Manual clock Port to Pin-19 (Input & Output) of ICBase-1.
- Connect Pin-6 (Input & Output) of ICBase-1 to Pin-5 (Input & Output) of ICBase-2.
