4:1 multiplexer - Copy

Aditya Kamtikar
Aditya Kamtikar
• Created on Mar 27, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
4:1 multiplexer - Copy
100%

Integrated Circuits Used

74LS153

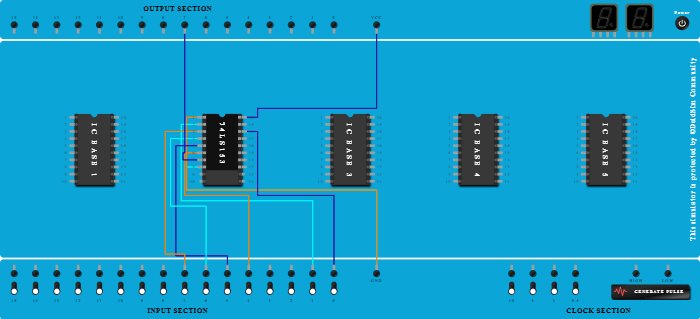

Procedure

  1. Add IC 74LS153 into ICBase-2 (74LS153).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS153).
  3. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS153).
  4. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS153).
  5. Connect Input-0 to Pin-18 (Input) of ICBase-2 (74LS153).
  6. Connect Input-1 to Pin-2 (Input) of ICBase-2 (74LS153).
  7. Connect Input-4 to Pin-6 (Input) of ICBase-2 (74LS153).
  8. Connect Pin-5 (Input) of ICBase-2 (74LS153) to Input-5.
  9. Connect Input-6 to Pin-4 (Input) of ICBase-2 (74LS153).
  10. Connect Pin-3 (Input) of ICBase-2 (74LS153) to Input-7.
  11. Connect Output-7 to Pin-7 (Output) of ICBase-2 (74LS153).
